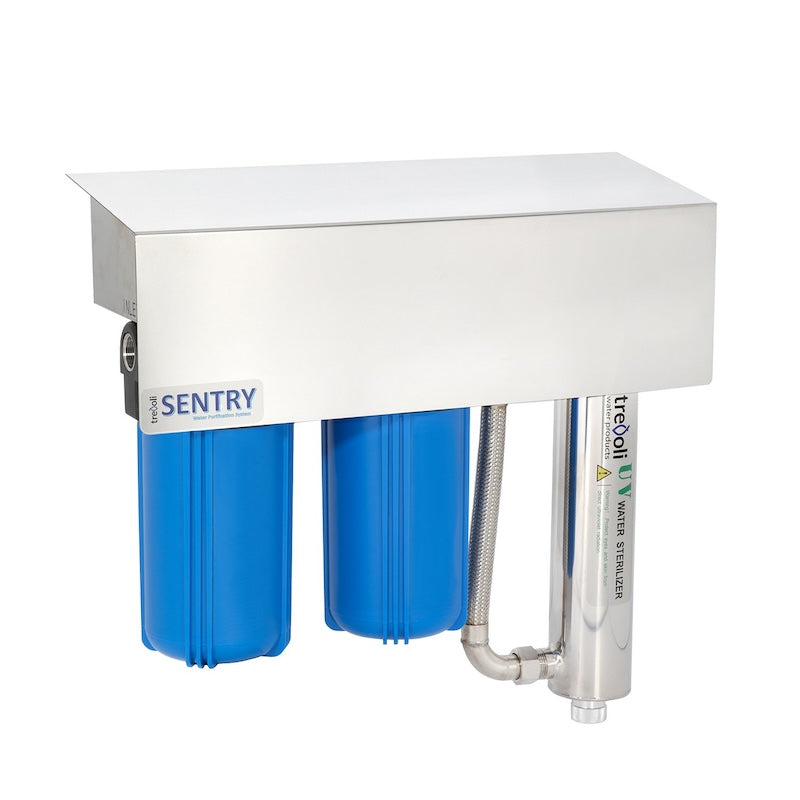

Sentry 102 Whole House UV Water Filtration System
The Sentry 102 is an all-in-one whole house water filtration and UV treatment system designed to improve household water quality from rainwater, rural water and mains water supplies.
Water passes through multiple filtration stages to help reduce sediment, odour, colour and taste issues before being treated with ultraviolet light to inactivate harmful microorganisms including E. coli, Cryptosporidium, Campylobacter and Giardia.
🚚 Free NZ Shipping
Whole House Filtration
UV Water Treatment
Dual Stage Filtration
75 LPM Council Rated
Rainwater & Mains Water
Build a Complete Water System
The Sentry 102 pairs well with Trevoli pressure pumps and pressure tanks to create a complete household rainwater supply and treatment system.
-
Popular Pump: Trevoli CMB SP5-47E Water Pressure Pump
-
Recommended Tank: Trevoli PT60 60L Pressure Tank
View SP5-47E Pump
View PT60 Tank
Ideal For
- Medium to large homes
- Rainwater harvesting systems
- Rural homes
- Lifestyle blocks
- Off-grid properties
- Whole house drinking water treatment
Key Benefits
- Reduces sediment, odour, colour and taste issues
- UV treatment for harmful microorganisms
- Fully assembled stainless steel unit
- Wall mounted plug-and-play design
- Left or right water entry options
- Includes pressure gauges and service spanner
Why Choose the Sentry 102?
The Sentry 102 is designed for homes where water quality may be affected by sediment, taste, odour or biological contamination. It is especially useful for rainwater systems where roof, gutter, bird, possum or livestock-related contamination may be a concern.
The system combines two 10" Jumbo Big Blue filter housings with a high-intensity UV lamp to provide both physical filtration and ultraviolet treatment in one compact, wall-mounted unit.
Because the unit comes fully assembled, installation is simpler than building a filter and UV system from separate components.
Filtration and UV Protection
Water first passes through filtration stages to reduce larger particles and finer sediment before entering the UV chamber. The UV stage then exposes the water to ultraviolet light to inactivate microorganisms such as E. coli, Cryptosporidium, Campylobacter and Giardia.
UV treatment does not add chemicals to the water and does not change water taste, smell or chemistry.
Included Components
- Quality stainless steel housing with cover
- Fully assembled 48W UV lamp and quartz sleeve
- 2 x 10" Jumbo Big Blue water filter housing kits
- 1 x 10" Jumbo pleated 20 micron filter
- 1 x 10" Jumbo polyspun 1 micron filter
- Automatic control ballast with 365 day countdown timer
- 2 x pressure gauges
- Filter housing spanner
Specifications
| Model |
Sentry 102 |
| Product Type |
Whole House Water Filtration & UV Treatment System |
| Council Recommended Level |
75 LPM @ 40mJ/cm² |
| Nominal Recommended Flow |
94 LPM @ 30mJ/cm² |
| Maximum Recommended Flow |
132 LPM @ 16mJ/cm² |
| UV Lamp |
48W High Intensity Lamp |
| Inlet / Outlet |
1" / 25mm |
| Temperature Range |
2–40°C |
| Maximum Pressure |
125 PSI |
| Dimensions |
580mm x 220mm x 580mm |
| Water Entry |
Left hand or right hand entry |
| Brand |
Trevoli |
Frequently Asked Questions
What does the Sentry 102 filter out?
The Sentry 102 helps reduce sediment, odour, colour and taste issues. It also uses UV treatment to inactivate harmful microorganisms including E. coli, Cryptosporidium, Campylobacter and Giardia.
Is the Sentry 102 suitable for rainwater tanks?
Yes. The Sentry 102 is well suited to rainwater systems, especially where roof, gutter, bird, possum or livestock-related contamination may be a concern.
What is the difference between filtration and UV treatment?
Filtration helps remove physical particles such as sediment and silt. UV treatment uses ultraviolet light to inactivate microorganisms without adding chemicals to the water.
Can the Sentry 102 be configured for left or right water entry?
Yes. The Sentry 102 can be configured for left hand or right hand water entry to suit different installation layouts.
Does this system come assembled?
Yes. The Sentry 102 comes fully assembled and is designed for wall-mounted plug-and-play installation by a suitably qualified installer.
How often do the filters and UV lamp need replacing?
Replacement intervals depend on water quality and household usage. The UV system includes a 365 day countdown timer to help indicate lamp replacement timing.
Can this be used with Trevoli pumps and pressure tanks?
Yes. The Sentry 102 can be paired with Trevoli household pressure pumps and pressure tanks to create a complete rainwater supply and treatment system.
Need Advice?
Choosing the right water treatment system depends on your water source, household size, flow rate and filtration requirements. Contact The Off Grid Store for help choosing the right pump, pressure tank and UV filtration setup.
