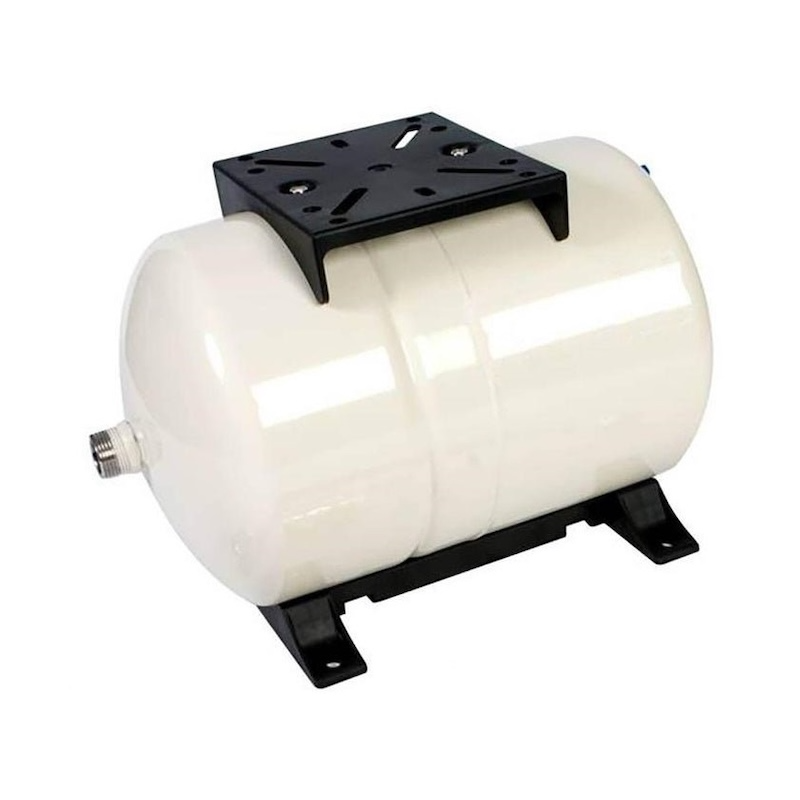

Trevoli PT60 60L Pressure Tank
The Trevoli PT60 60L Pressure Tank is designed to improve the performance of household water pressure systems by reducing pump cycling, helping maintain smoother water flow and supporting longer pump life.
Ideal for family homes, rainwater tank systems, lifestyle blocks and domestic water pump installations, the PT60 is a practical all-round pressure tank for larger household water systems.
🚚 Free NZ Shipping
60L Capacity
Family Homes
Reduces Pump Cycling
Rainwater Systems
Pump Protection
Ideal For
- Family homes
- Lifestyle blocks
- Rainwater tank systems
- Trevoli household pressure pumps
- Medium to larger domestic pump systems
- Water pressure system upgrades
Key Benefits
- Helps reduce unnecessary pump starts
- Improves water system performance
- Supports smoother water pressure
- Can help extend pump life
- Useful 23L system drawdown
- Strong all-round tank size for homes
Why Add a Pressure Tank?
A pressure tank acts as a buffer in a water pressure system. Instead of the pump starting every time a small amount of water is used, the tank stores pressurised water and helps reduce unnecessary pump cycling.
This can improve system feel, reduce wear on the pump and help deliver smoother water pressure for everyday use.
For many household rainwater systems, adding a pressure tank is one of the simplest ways to improve reliability and long-term pump performance.
Recommended Pump Pairings
The Trevoli PT60 Pressure Tank is a strong all-round option for household rainwater and water pressure systems. It offers more usable drawdown than smaller tanks, making it a better fit for family homes and lifestyle block water systems.
| Trevoli CMB SP5-47E |
Recommended for medium to larger household water systems |
| Trevoli CMB 5-57E |
Recommended for larger household systems and lifestyle blocks |
| Trevoli CMB 5-67E |
Suitable for higher-demand systems where a larger tank may also be considered |
A Practical Upgrade for Household Water Systems
The PT60 Pressure Tank is especially useful where a pump is supplying multiple taps, toilets, washing machines, outdoor taps or other outlets that may use small amounts of water throughout the day.
By reducing rapid pump starts and stops, the tank helps create a more stable and practical water system for everyday household use.
Need Advice?
Shop Trevoli Pumps
Specifications
| Model |
Trevoli PT60 |
| Capacity |
60L |
| Product Type |
Vertical Pressure Tank |
| Connection |
1" Male |
| Material |
Steel |
| System Drawdown |
23L |
| Maximum Working Pressure |
10 bar |
| Maximum Working Temperature |
100°C |

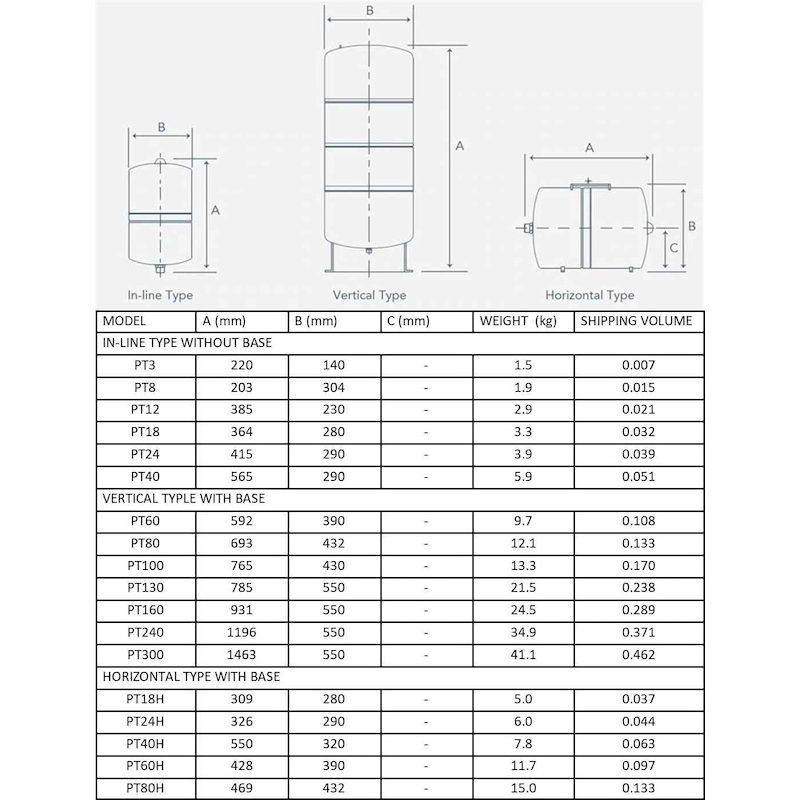

| Dimensions |
592mm high x 390mm diameter |
| Weight |
9.7kg |
| Application |
Household water pressure systems / pump cycling reduction |
| Suitable For |
Rainwater systems, domestic pump systems and clean water pressure systems |
| Brand |
Trevoli |
Frequently Asked Questions
What does a pressure tank do?
A pressure tank stores pressurised water so the pump does not need to start every time a small amount of water is used. This can reduce pump cycling and help improve overall system performance.
Is this tank suitable for Trevoli pumps?
Yes. The PT60 Pressure Tank is suitable for use with selected Trevoli household pressure pumps and is a strong option for medium to larger domestic water systems.
Which pump should I pair this tank with?
The PT60 is a good match for systems using the Trevoli CMB SP5-47E, CMB 5-57E or CMB 5-67E. Smaller systems may use the PT24, while larger or higher-demand systems may benefit from a PT100 or larger tank.
Do I need a pressure tank if my pump has an automatic controller?
Not always, but a pressure tank can still be useful. An automatic controller starts and stops the pump, while a pressure tank helps reduce short cycling and can improve system feel, especially where small amounts of water are used frequently.
Is the PT60 large enough for a full household?
Yes, the PT60 is a strong all-round choice for many family homes and lifestyle block water systems. Final suitability depends on household size, pump selection, pipework and water usage patterns.
Can this be used with rainwater tanks?
Yes. The PT60 can be used as part of a rainwater pressure system with a suitable pump, pipework and filtration setup.
Need Advice?
Choosing the right pressure tank depends on your pump, household demand, pipework and how often small amounts of water are used. Contact The Off Grid Store for help choosing the right pump and pressure tank combination.
