The Ethos EconAir 4.2m Flue Kit has been specifically designed for Ethos freestanding wood fires and forms a critical part of the unique Ethos heating system. Unlike conventional wood fire flues, the patented EconAir design draws combustion air from outside the building and pre-heats it before it enters the firebox.
This innovative system improves combustion efficiency, reduces emissions, eliminates cold draughts, and allows Ethos wood fires to perform exceptionally well in modern airtight homes.

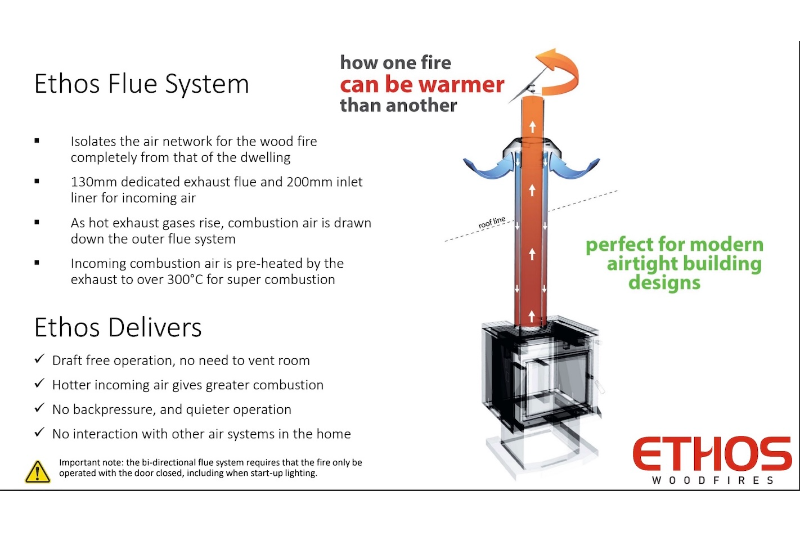

Patented EconAir Design 4.2m Flue Kit Reduced Draughts Improved Efficiency Airtight Home Compatible Ethos ApprovedUnlike traditional wood fire flues that draw air from inside the home, the Ethos EconAir system isolates combustion air from the dwelling. Fresh air is drawn down the outer section of the flue where it is heated by the exhaust gases travelling up the inner flue.
This pre-heated combustion air enters the firebox at temperatures exceeding 300°C, creating a hotter, cleaner burn with improved efficiency and lower fuel consumption.
The result is greater heat output, reduced smoke emissions, and a more comfortable indoor environment without cold air being drawn into the room.

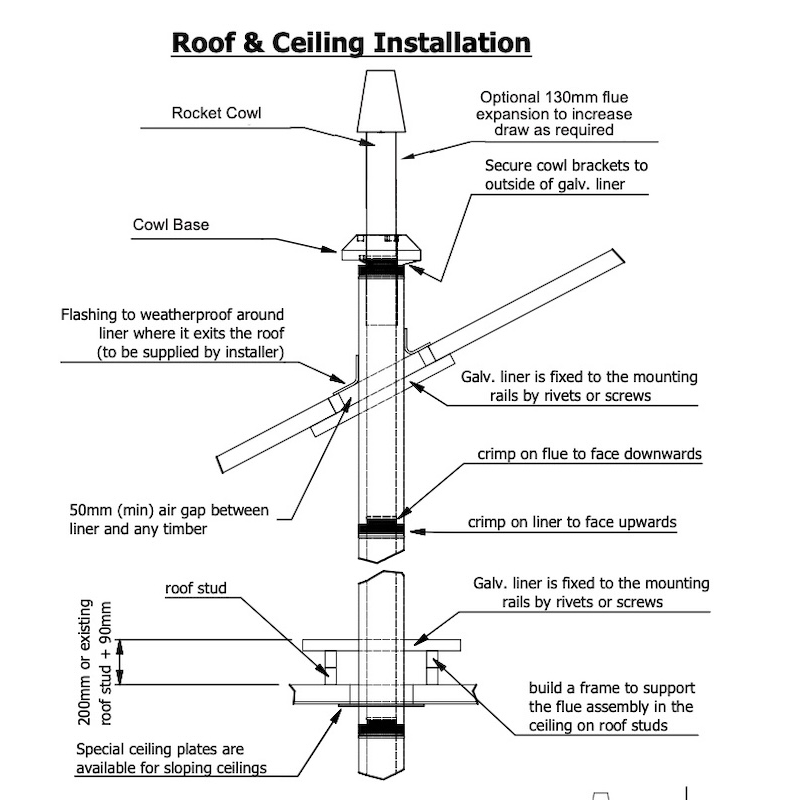

The standard Ethos EconAir 4.2m Flue Kit includes the major components required for a typical freestanding Ethos wood fire installation.

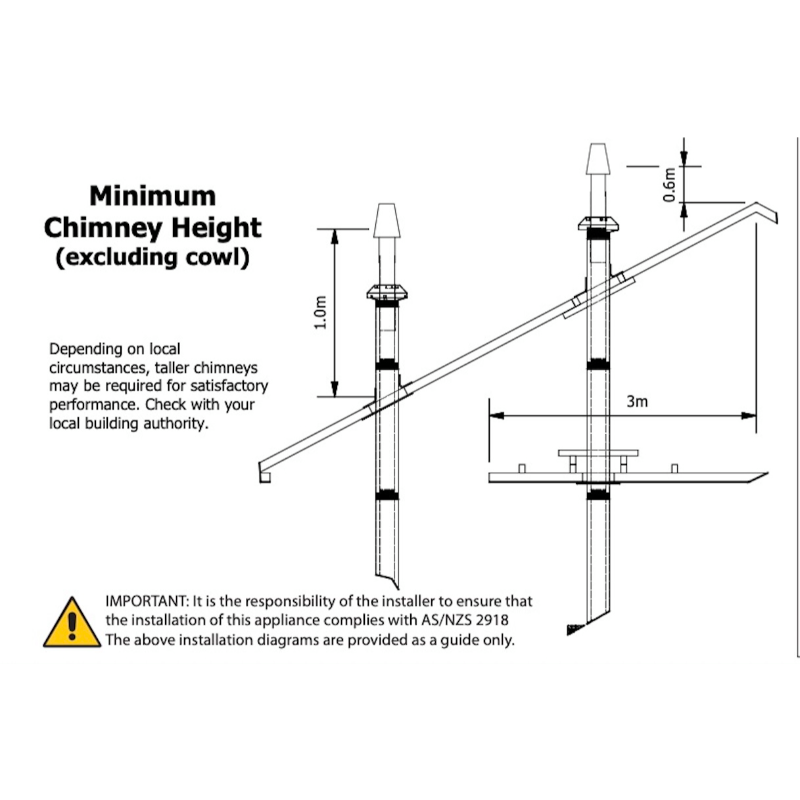

Additional extensions or installation components may be required depending on roof height, building design, and installation requirements.
Need Advice? Shop Ethos Wood Fires| SKU | EXA-10003 |
| Product | EconAir 4.2m Flue Kit |
| Application | Freestanding Ethos Wood Fires |
| System Type | Patented Dual-Air EconAir System |
| Flue Height | 4.2 Metres |
| Inner Flue Diameter | 130mm Stainless Steel |
| Outer Liner Diameter | 200mm |
Yes. The EconAir system is an integral part of the Ethos heating design and is required for Genesis, Phoenix, Galaxy and Aquos freestanding models.
Yes. The EconAir system was specifically developed to perform exceptionally well in modern airtight buildings.
Yes. Additional flue extension components are available where greater chimney height is required.
Yes. Installation must be completed by a suitably qualified installer and comply with AS/NZS 2918 and local building requirements.
We get it. You've got a lot of choice when it comes to online retailers.
Here's why we think you should shop with us at The Off Grid Store.
We can deliver to almost anywhere in New Zealand, unfortunately there are a few exceptions such as Chatham Islands and for larger items and Great Barrier Island. Best prices online guaranteed.
30 Day Easy Returns. Not happy with your product, we'll take it back no
questions asked.
Great Service. We pride ourselves on the best service, anywhere.
Your Satisfaction Guaranteed. We handpick our products for quality, we
know you'll love them. But if there is ever something wrong, we'll fix it.
Ethos wood fires and flue components are shipped by freight courier. Shipping costs may vary depending on your delivery location, access requirements, and whether the address is urban or rural.
Freight Quote Note:
Ethos products require a freight quote before dispatch. Please contact us on 0800 464 664 or sales@theoffgridstore.nz with your delivery address and the Ethos model you are interested in, and we’ll confirm the best available freight option.
Remote & Rural Delivery:
Remote, rural, or hard-to-access locations may require custom freight arrangements, depot collection, or additional delivery charges. If this applies to your order, we’ll contact you before dispatch to confirm the available options.
Installation Note:

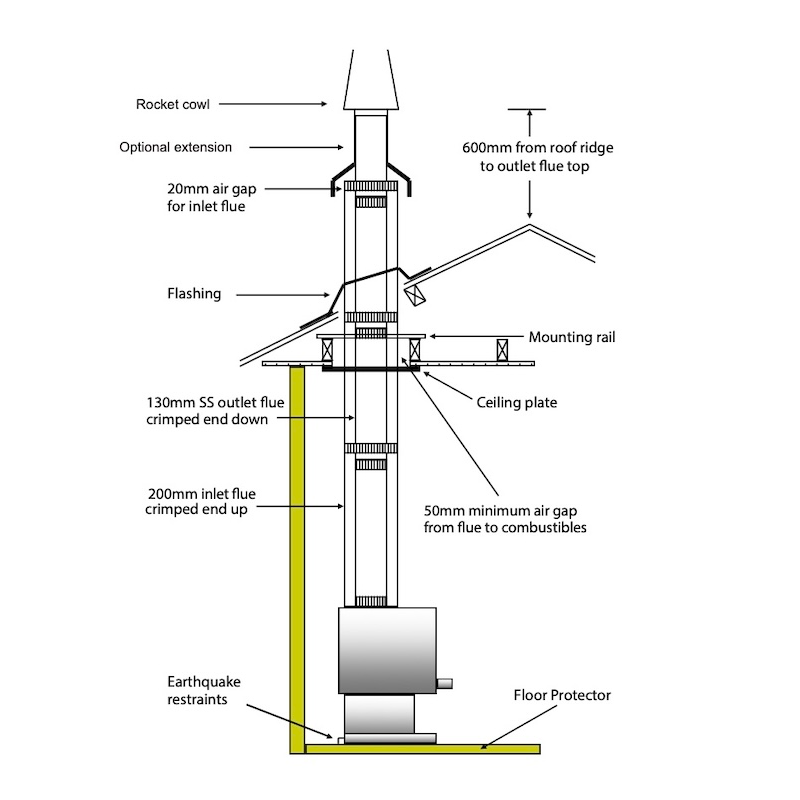

The Ethos Genesis requires the Ethos EconAir flue system. A standard 4.2m flue kit is available separately and suits approximately 90% of installations. Additional flue extensions may be required depending on the building, roof height, and installation layout. All wood fire installations must be completed by a suitably qualified installer and comply with local council and building requirements.
