BLUETTI AC500 + 2x B300K | Home Battery Backup (Bundle)
Why Choose the AC500 System?
Charge Your Way
-
Wall AC: Up to 5,000W charging (3,000W with 1 × B300K, 5,000W with 2+).
-
Solar: Up to 3,000W input — harness clean renewable power.
-
Dual AC + Solar: Huge 8,000W combined input.
-
Car charging: Recharge via 12V/24V cigarette lighter.
Run Your Entire Home
Delivers 5,000W continuous power with 10,000W surge — enough for AC units, tools, fridges, and more.

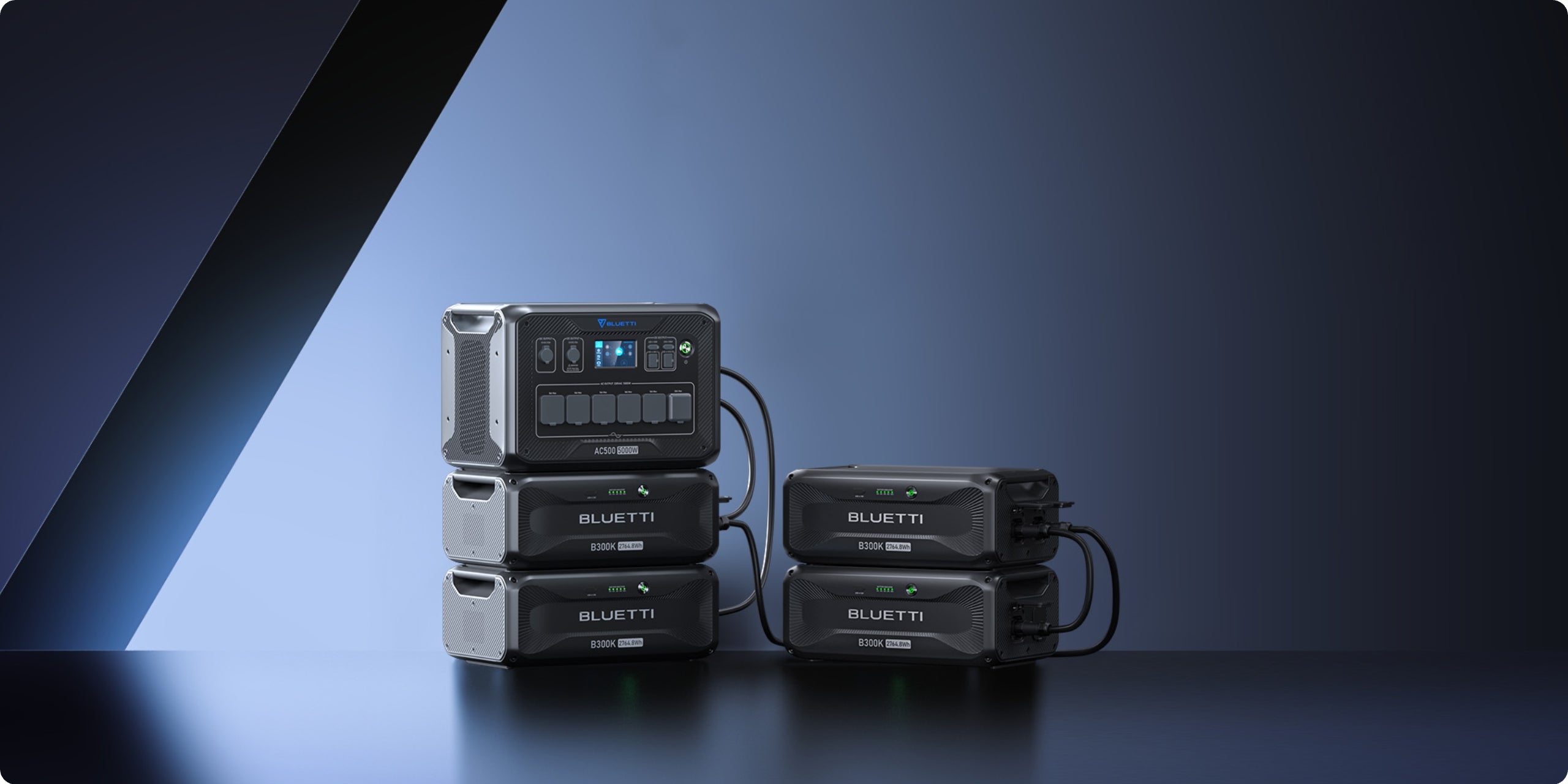

Scalable & Modular
Supports up to 6 × B300K batteries (2,764.8Wh each) for a maximum 16,588Wh system.

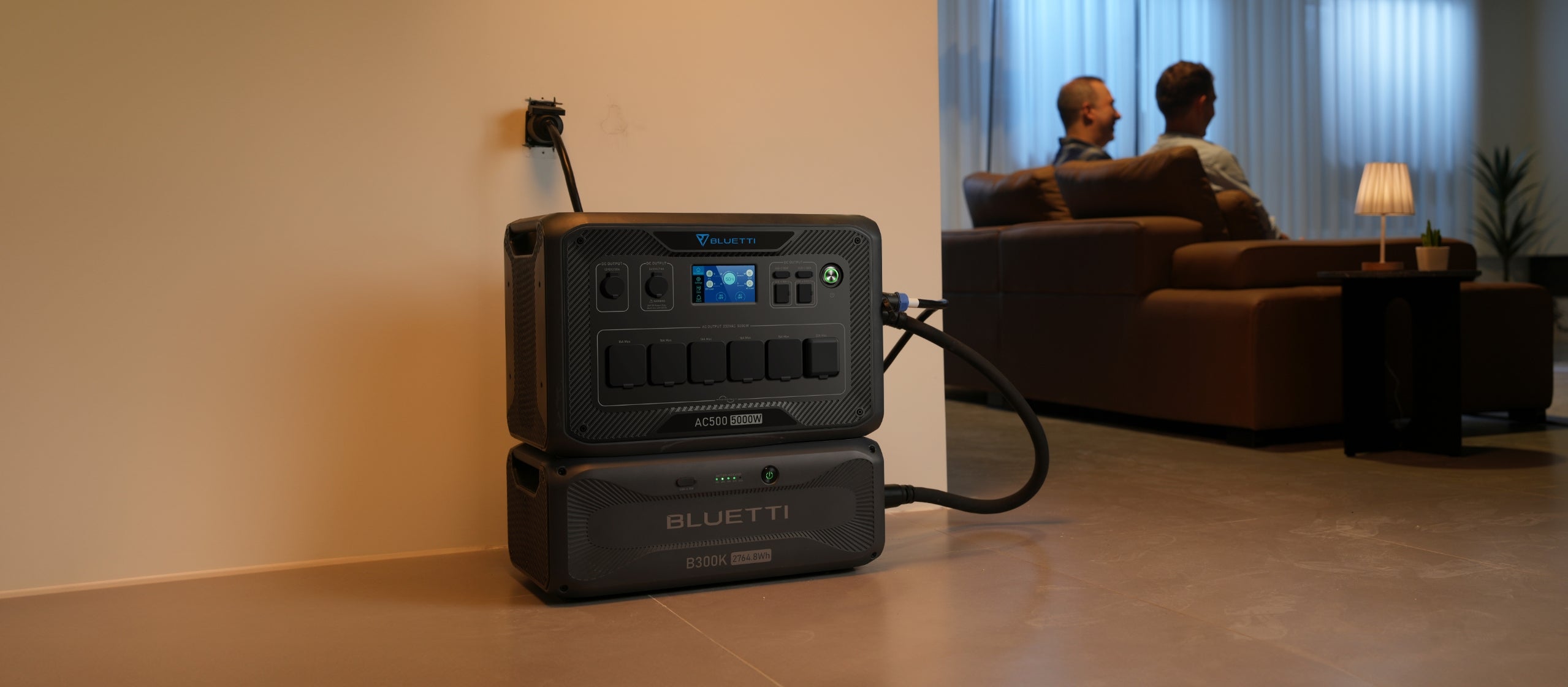

Uninterrupted Backup
EPS backup engages within 20ms to keep your home powered during outages.
Smart App Control
Monitor consumption, manage modes, and update firmware via Wi-Fi & Bluetooth.
Specifications

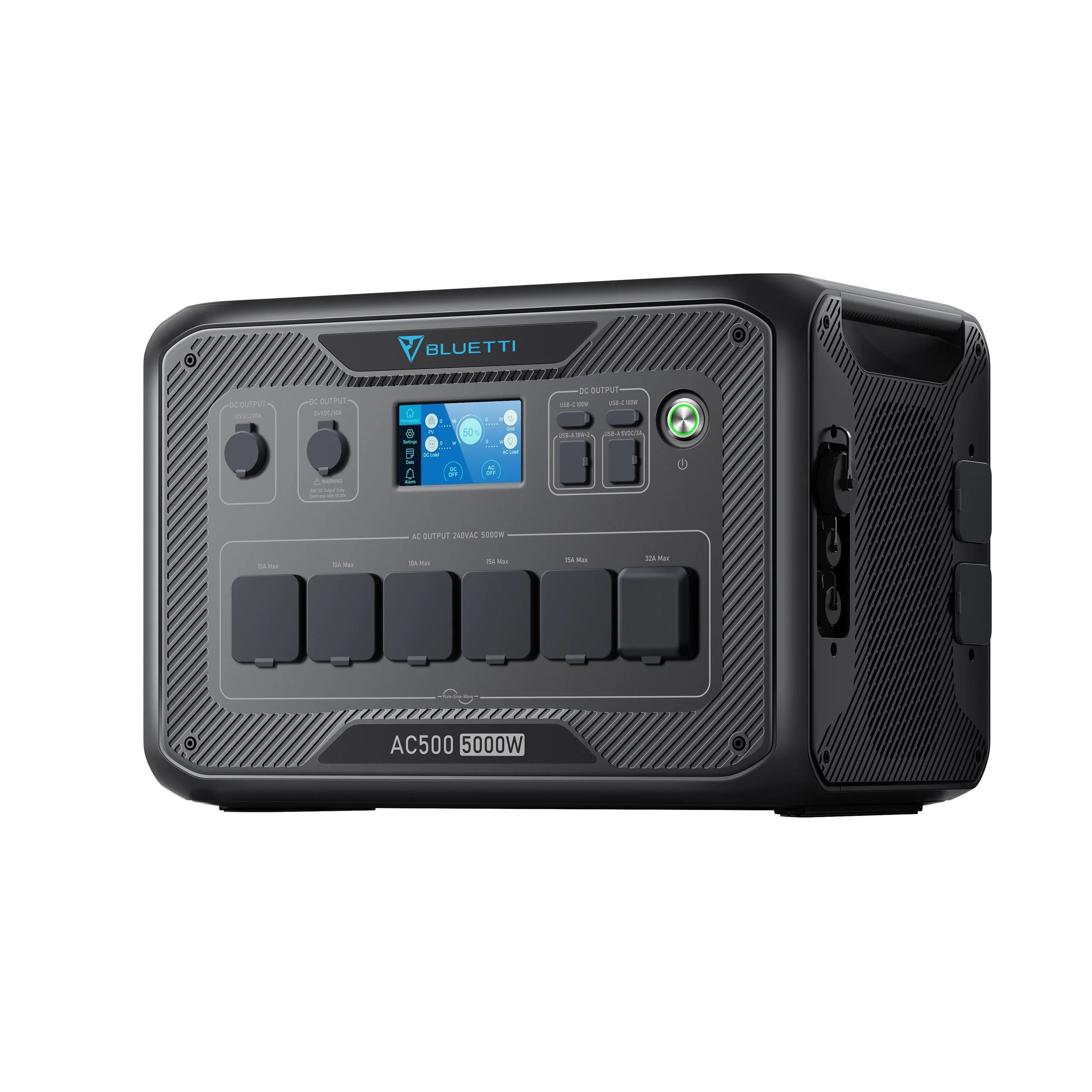

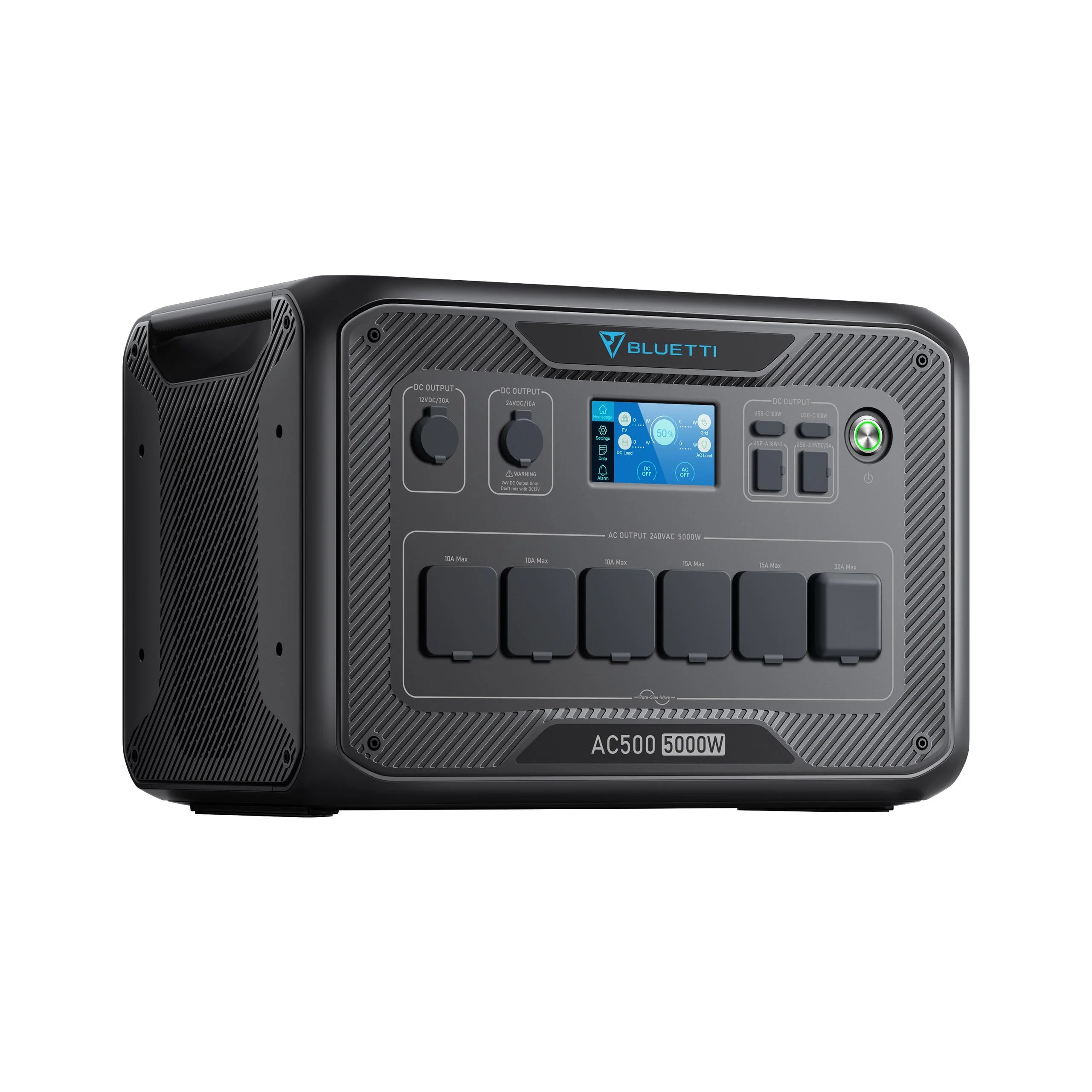

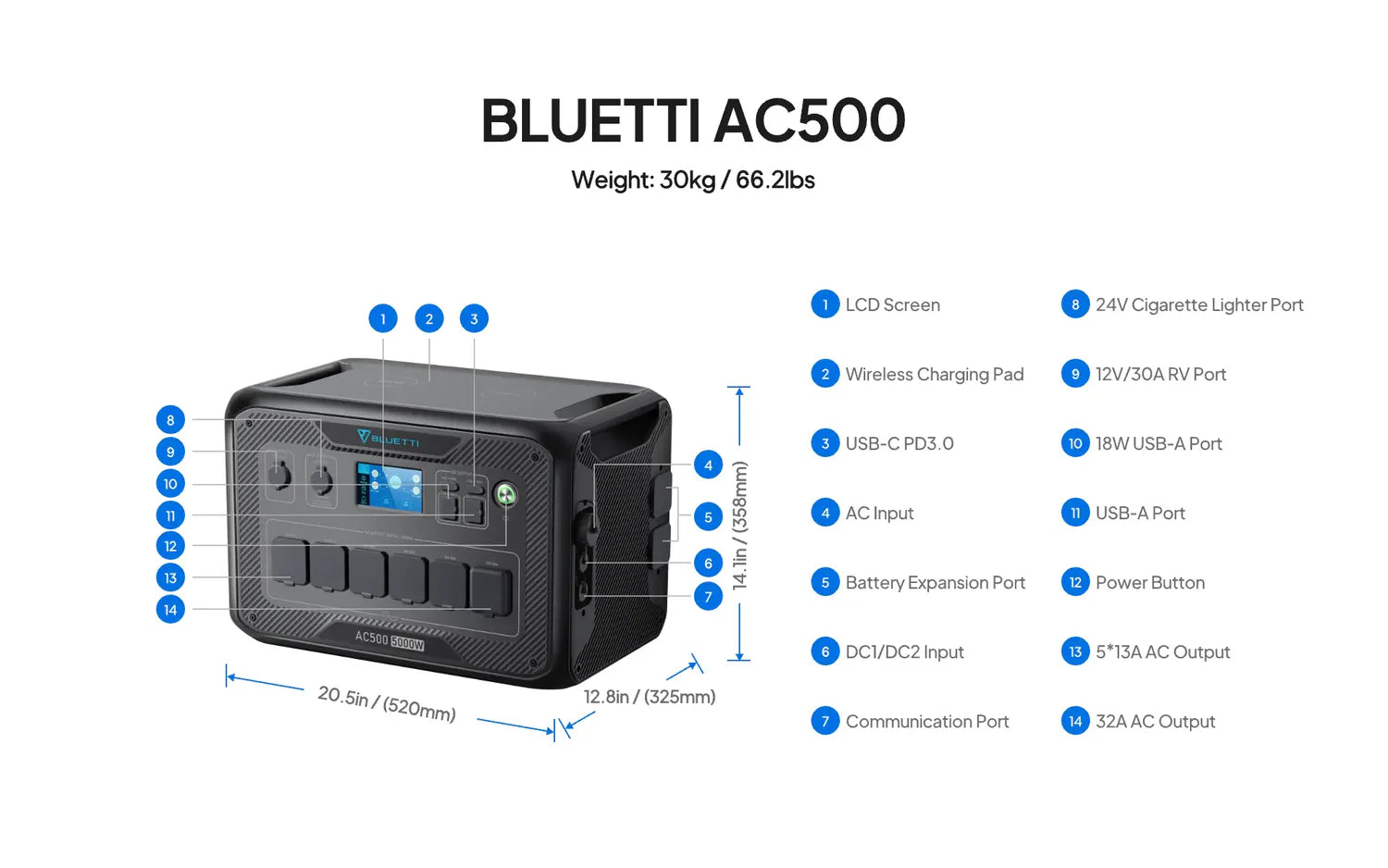

AC500 Power Station
-
AC Output: 5,000W total (3 × 240V/10A, 2 × 240V/15A, 1 × 240V/32A)
-
Inverter: Pure sine wave
-
Surge Power: 10,000W
-
USB Ports: 2 × 5V/3A, 2 × 18W, 2 × USB-C (100W)
-
DC Outlets: 1 × 12V/30A RV, 1 × 24V/10A car (regulated)
-
Wireless Charging Pads: 2 × 15W
-
Inputs:
-
AC: 4,500W (1 × B300K), 5,000W (2+ B300K)
-
Solar: 3,000W max (12–150VDC, 15A)
-
Car: 12/24V input
-
Max combined: 8,000W (AC + Solar)
-
-
General:
-
App control: Wi-Fi & Bluetooth
-
Expandable: Up to 6 × B300K
-
Pass-through charging: Yes
-
Weight: 30 kg
-
Dimensions: 52 × 32.5 × 35.8 cm
-
Operating temp: –20°C to 40°C
-
Warranty: 48 months
-
B300K Expansion Battery (per unit)
-
Capacity: 2,764.8Wh (51.2V, 54Ah)
-
Type: LiFePO₄
-
Life cycles: 4,000+ (to 80%)
-
USB-A: 12W max (5V/2.4A)
-
Weight: 29.5 kg
-
Dimensions: 525 × 327 × 209 mm
-
Operating temp: Charge 0–40°C, Discharge –20–40°C
-
Storage temp: –20–25°C (up to 6 months)
-
Warranty: 4 years
In the Box
-
AC500 Power Station × 1
-
B300K Expansion Battery × 2
-
15A AC charging cable × 1
-
AC500 solar charging cable (MC4 → Aviation) × 1
-
Car charging cable (cig lighter → MC4) × 1
-
Battery expansion cable (P090A) × 1
-
P090D → P150D cable × 2
-
User manual × 1
