75L Pump Chamber with Submersible Vortex Pump
The 75L Pump Chamber with Submersible Vortex Pump is designed for collecting and transferring greywater, wastewater, rainwater and drainage water where gravity flow is not practical. Ideal for small domestic installations, the chamber includes a stainless steel vortex pump mounted inside a compact underground tank system.
75L Pump Chamber Submersible Vortex Pump Included Greywater & Wastewater Ready Fully Buried Installation Compact Domestic Solution 🚚 Freight Quoted Per Order
Ideal For
- WaterMate installations
- Greywater transfer systems
- Wastewater collection
- Drainage applications
- Lifestyle blocks
- Sites without gravity fall
Key Benefits
- Moves water where gravity drainage isn't possible
- Compact underground installation
- Includes stainless steel vortex pump
- Suitable for greywater and wastewater applications
- Can be completely buried
- Simple and reliable operation
Why Use A Pump Chamber?
Many properties do not have enough natural fall for greywater or wastewater to flow by gravity alone. A pump chamber collects water and automatically pumps it to a higher discharge point, irrigation area or wastewater system when required. :contentReference[oaicite:2]{index=2}
How The 75L Pump Chamber Works
Greywater, wastewater or drainage water enters the 75L chamber where it is temporarily stored inside the polypropylene tank. As the water level rises, the submersible vortex pump activates automatically and transfers the water through the discharge pipework.
The vortex pump design helps handle wastewater containing suspended solids while reducing the likelihood of blockages. This makes it suitable for a range of domestic wastewater and greywater applications. :contentReference[oaicite:3]{index=3}
The compact chamber can be fully buried underground, making it ideal where space is limited or where a discreet installation is preferred. :contentReference[oaicite:4]{index=4}
Need Help Choosing? Shop WaterMate Products
What's Included

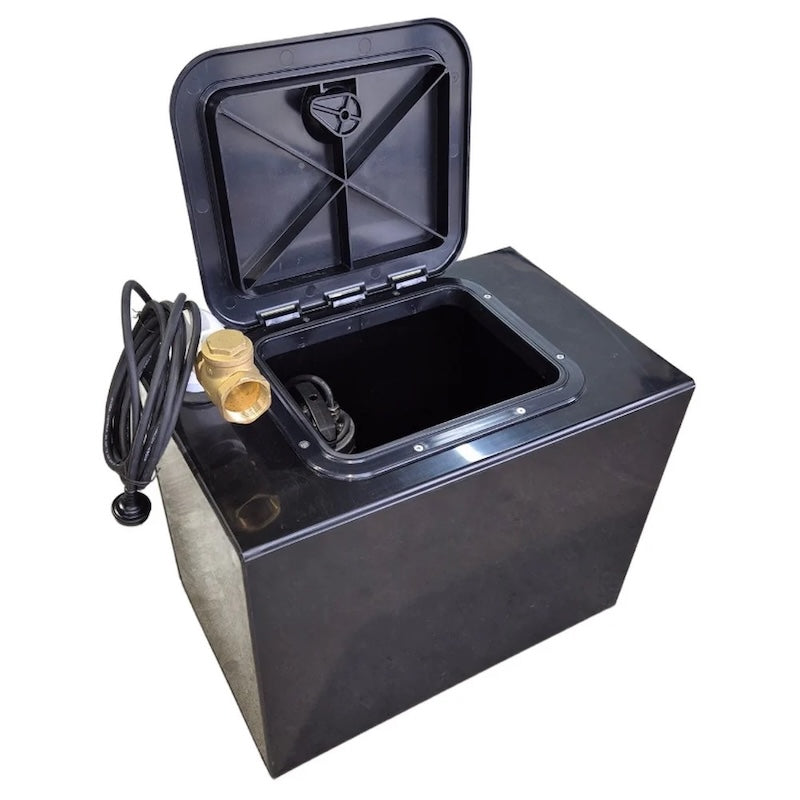

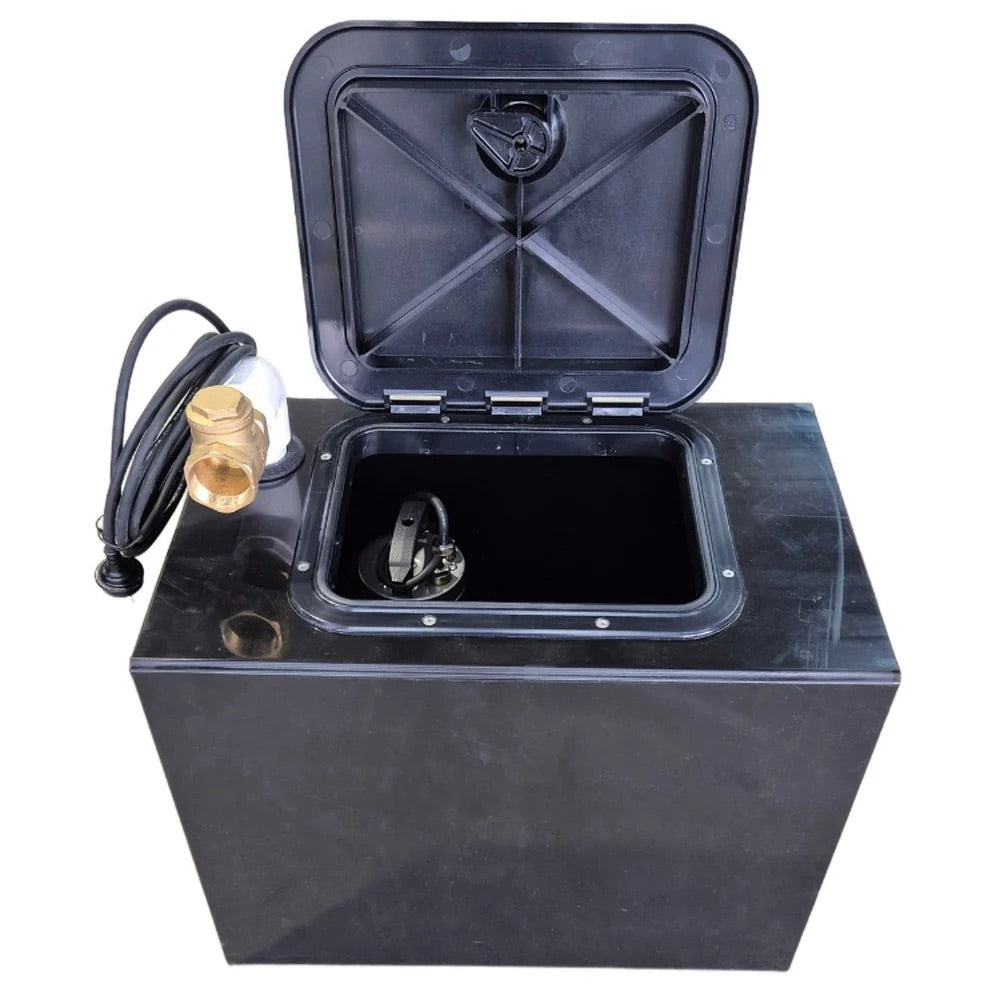

- 75L Polypropylene Pump Chamber

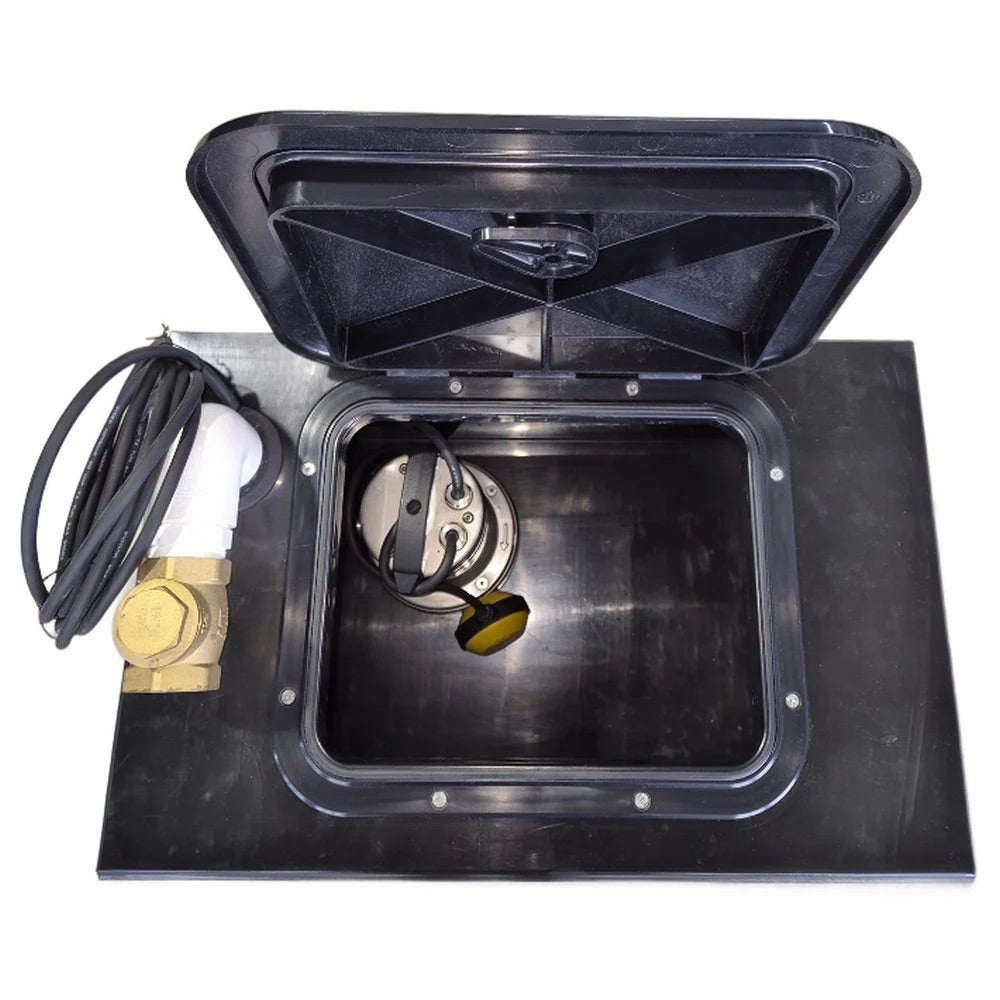

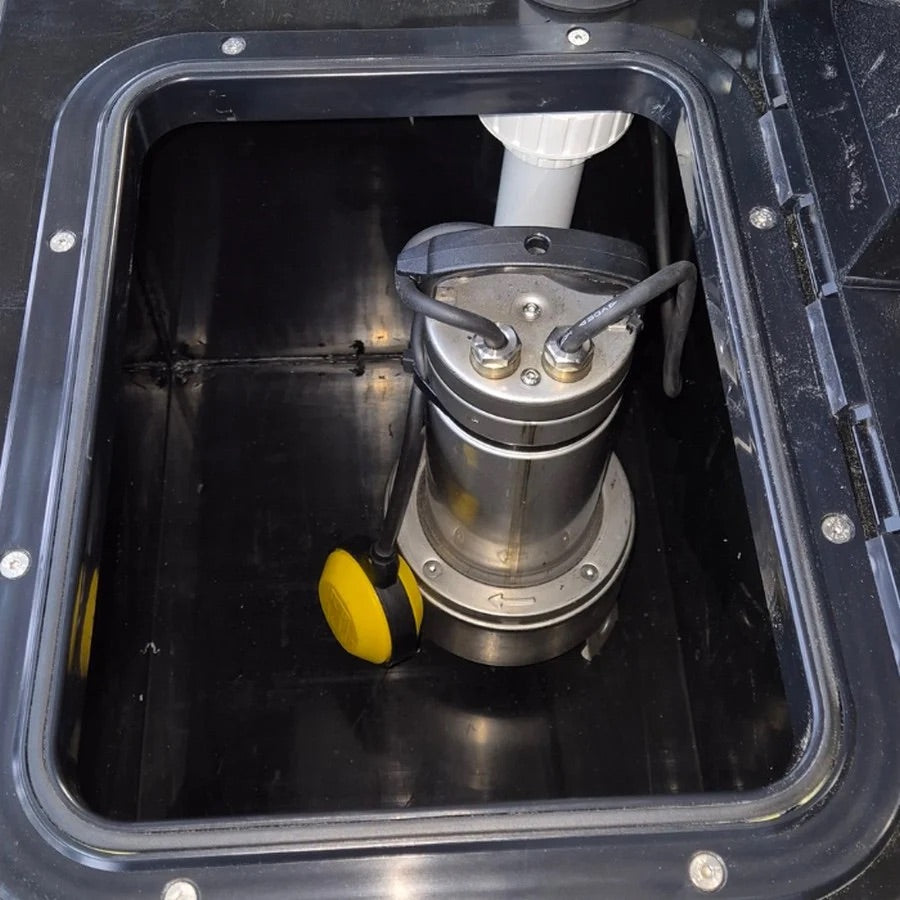

- Stainless Steel Submersible Vortex Pump
- 40mm Discharge Pipework Connection
- Access Lid
- Pre-configured Internal Pump Installation
Specifications
| Tank Capacity |
75 Litres |
| Tank Material |
Polypropylene Plastic |
| Pump Type |
Submersible Stainless Steel Vortex Pump |
| Discharge Pipework |
40mm |
| Length |
580mm |
| Width |
380mm |
| Height |
440mm |
| Installation Type |
Fully Buried Underground |
Frequently Asked Questions
When would I need a pump chamber?
A pump chamber is typically used when wastewater or greywater cannot flow by gravity to the desired discharge location.
Can this be used with WaterMate systems?
Yes. It can be used alongside WaterMate greywater systems where additional pumping is required to reach the irrigation area.
Can the chamber be buried?
Yes. The chamber is designed for underground installation and can be completely buried
Is a high-level alarm included?
No. A high-level alarm can be added as an optional upgrade if early warning of pump issues is required.
Need Advice?
Not sure whether your site requires a pump chamber? Contact The Off Grid Store and we can help determine the best wastewater or greywater solution for your property.
