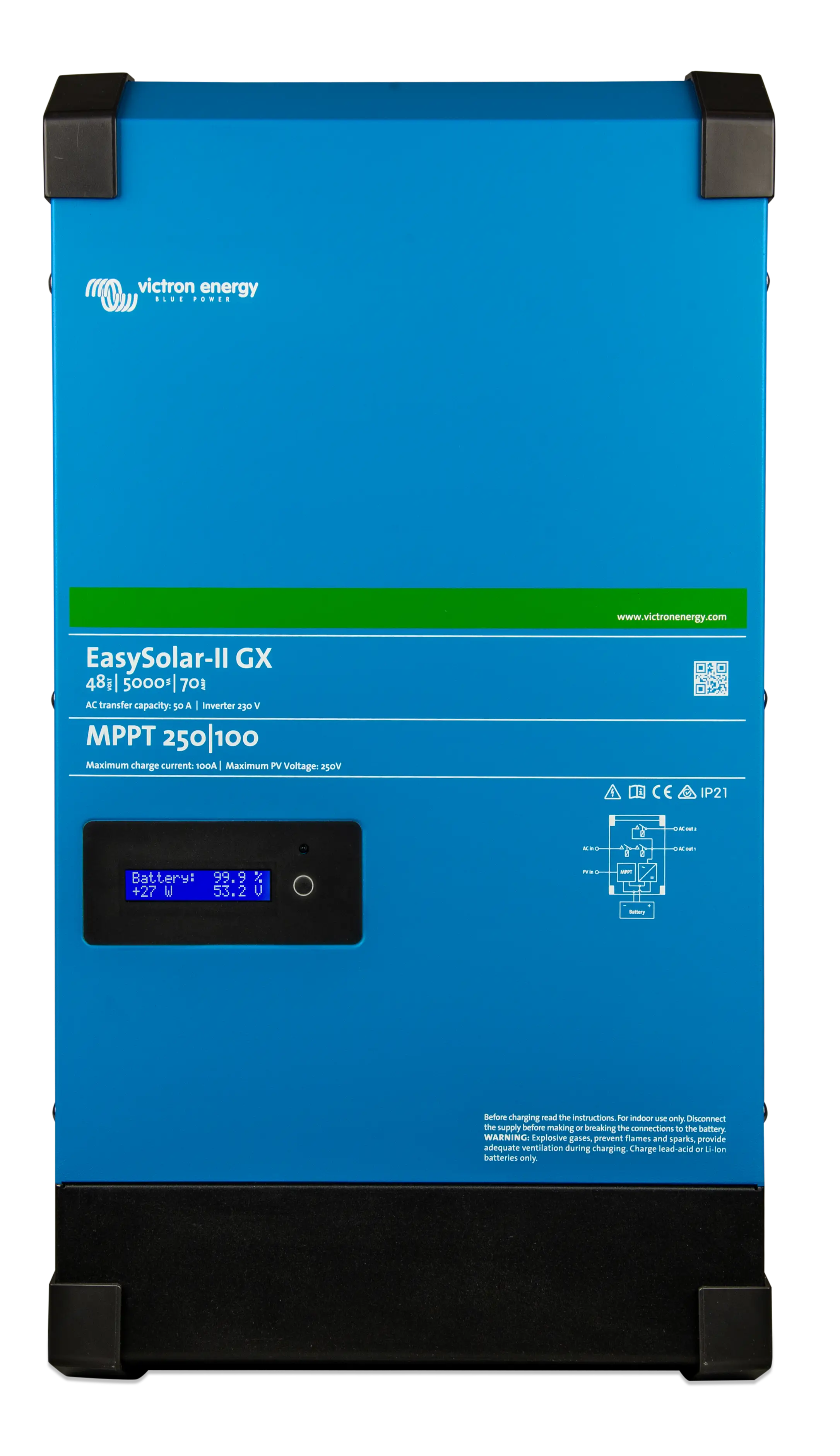

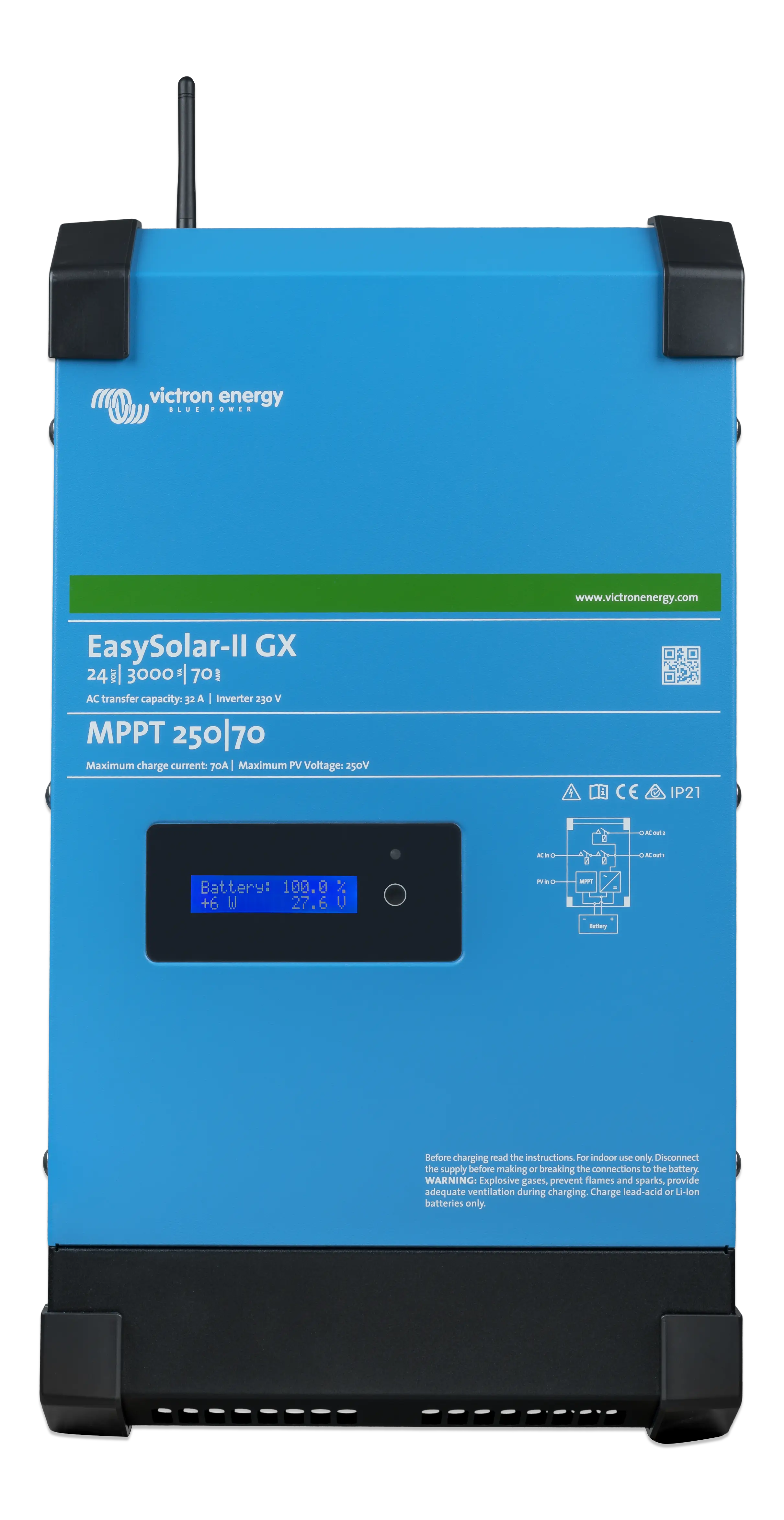

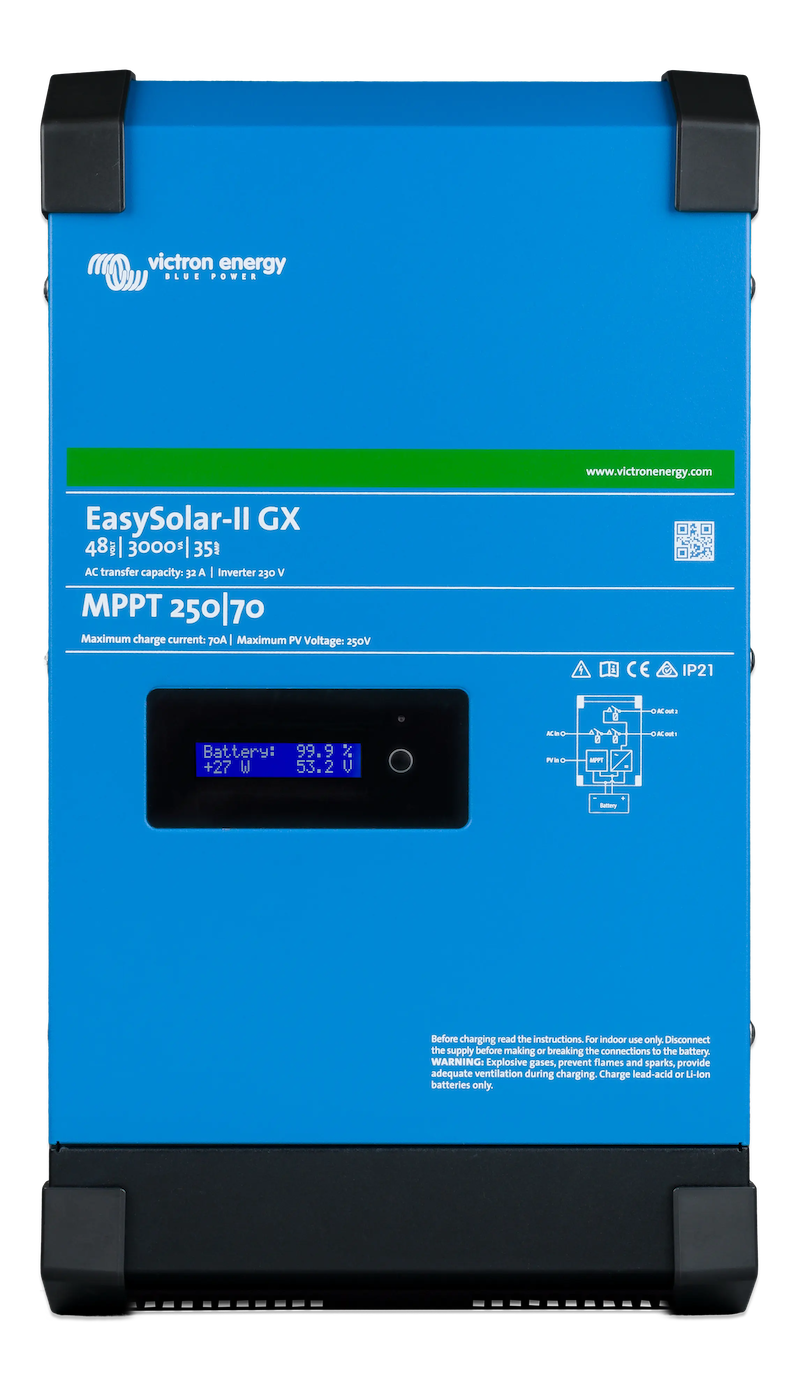

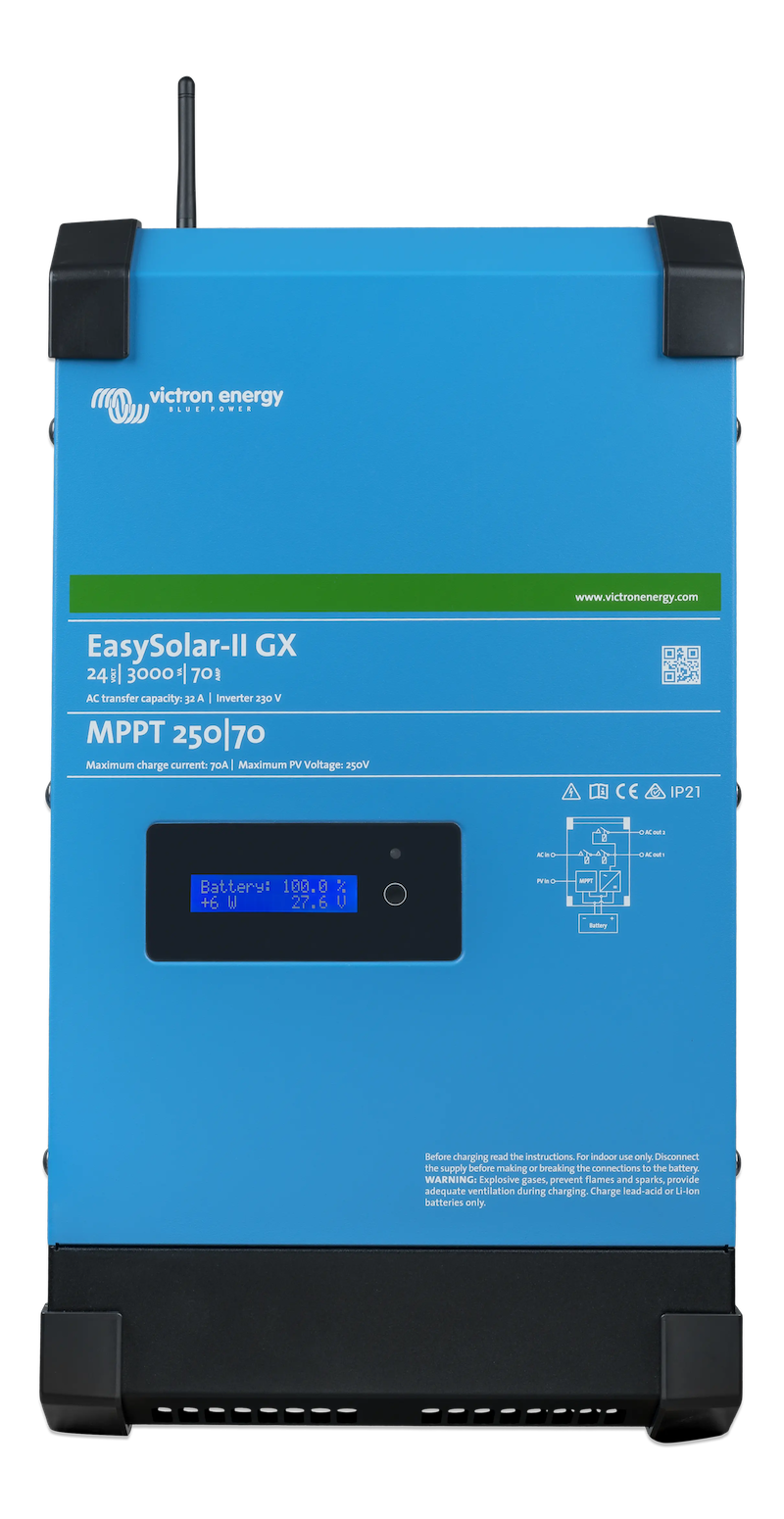

Victron Easy Solar II - GX
Victron EasySolar is an all-in-one solar power solution. The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
Two outstanding functions - prioritizes battery charging by the MPPT charge controller - connects to the internet, enabling remote monitoring (VRM website) and remote control.
The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16 character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and wifi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device. In addition, wifi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
Full Easy Solar range available, contact us for details
PMP242307010
PMP482307010
PMP482507010
