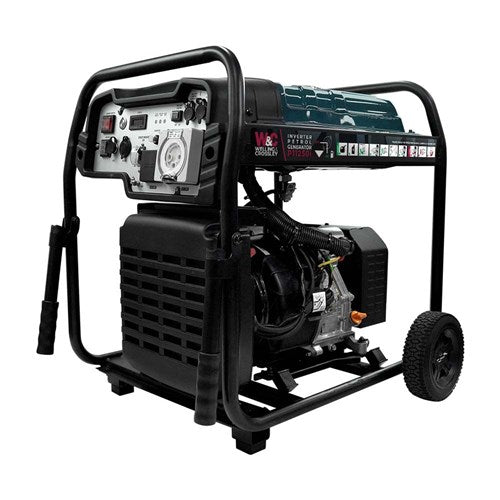

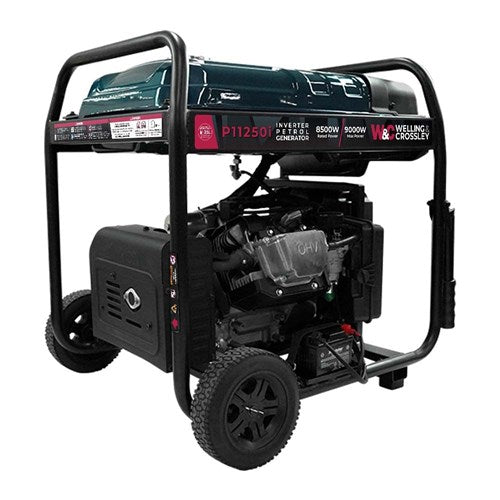

Welling & Crossley WC-P11250i 11.25 kVA (9,000W) Open Frame Inverter Petrol Generator with E-Start
Features
Inverter:
Advanced inverter technology Ensures stable and consistent power output for sensitive electronics and appliances
2-Wire Start:
This feature allows the generator to be started remotely from the closing of a remote contact. This could be an automatic transfer switch (ATS) in the event of a power failure, a float switch or any device that can provide a closed circuit as a start signal
Fuel Efficient:
This refers to how much power a generator can produce relative to its fuel consumption. Fuel-efficient generators run longer on less fuel, saving money and reducing the frequency of refuelling, which is particularly important for extended use.
Australia has emissions standards for outdoor power equipment. Euro 5 ensures compliance with these regulations.
- Heavy duty wheels, lifting bar & handle: Designed for easy transportation and mobility, even on rough terrain

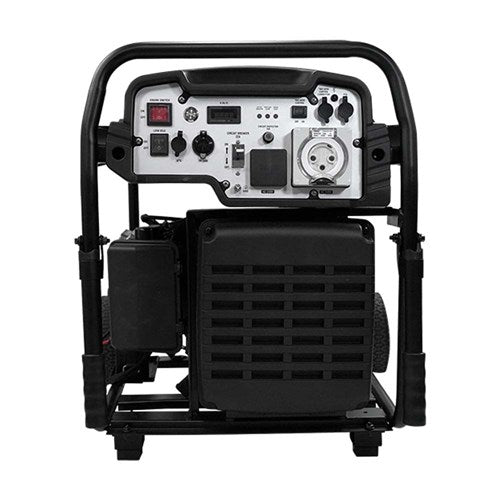

- Digital V/F/T 3-in-1 display: Easy-to-read display shows Volts, Frequency and Time for convenient monitoring
- Multiple start options: Push-button electric start, 2-wire remote start, manual recoil start and wireless remote start
- Large fuel capacity: Large long range petrol tank for extended run times
Applications
DIY Workshop
Worksite Power
Home Backup
Outdoor Events
Market Stalls & Mobile Business
Farming & Agriculture
- Whole home backup, including sensitive electronics and medical devices
- Power irrigation systems, farm and agricultural equipment
- Outdoor events for lights, sound systems etc

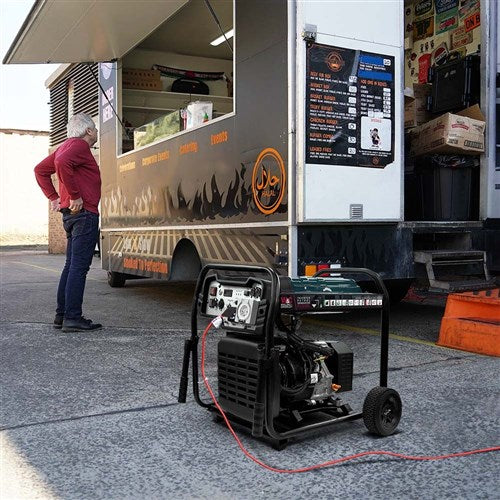

- Mobile businesses or market stalls to power appliances
- Work areas and construction sites
| Technical Specifications | |
|---|---|
| Product Code | 811986 |
| Model Rating | 11.25kVA |
| Max AC Output | 9000W |
| Rated AC Output | 8500W |
| Voltage | 240V AC |
| Type | Open Frame Inverter |
| Frequency | 50Hz |
| Connections | 1 x IP44 15A 1 x IP66 32A 1 x USB-A (18W) 1 x USB-C (15W) |
| Engine | WC-460B |
| Type | Single cylinder, 4 stroke, OHV air-cooled petrol |
| Displacement | 459cc |
| Speed | 3000rpm |
| Low Oil Protection / Warning | Fitted |
| Ignition System | DCDI |
| Starting Type | Recoil / Electronic / 2-Wire / Wireless Remote |
| Fuel Tank Capacity | 25L |
| Fuel Consumption | 1.45 L/hr @ ¼ load |
| Dimensions & Performance | |
| Product Dimensions | 715 x 560 x 680mm |
| Dry Weight | 73kg |
| Operating time at 25% Load | 17hr |
| Noise Level @ 7m | ＜70dBA |
| Limited Warranty | 2 Years |
| Additional | |
| Oil | 1.2L SAE10W-30 |
| Spark Plug | NGK BPR6ES |
| Fuel Type | Petrol - 91 octane unleaded |
| Power Factor | 0.8 |
| Packaging Dimensions | 750 x 590 x 710mm |
